ITEL SOLAR ENERGY Inverter 6kW 48V SP Hybrid WITH BRAND WARRANTY
Original price was: ₨230,000.00.₨148,000.00Current price is: ₨148,000.00.
ITEL Inverter 6kW 48V SP Hybrid Model: IPV-6K48U Efficiency MPPT Tracking Efficiency: 99.9% Max. Battery Mode Conversion AVAILABLE ON FAIZA ELECTRONIC & SOLAR HOUSE
Available on backorder
FAIZA ELECTRONIC
DESCRIPTION :

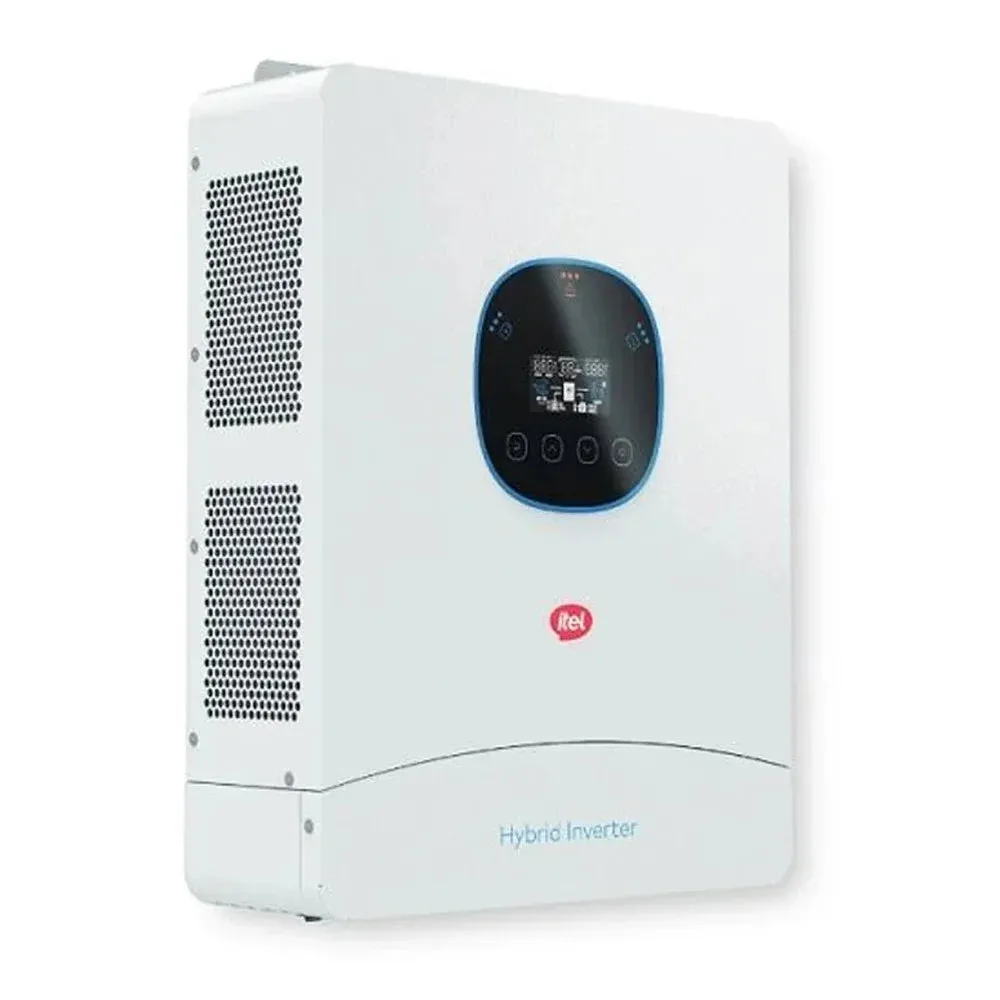

ITEL Inverter 6kW 48V SP Hybrid
Model: IPV-6K48U
Efficiency
- MPPT Tracking Efficiency: 99.9%
- Max. Battery Mode Conversion Efficiency: 93%
PV Input
- Max. PV Input Power: 6000W
- Max. DC Input Voltage: 500V
- Start-up Voltage: 75V
- MPPT Voltage Range: 85V-450V
- Max. Input Current: 27A
- Number of MPPT Trackers: 1
AC Input
- Max. Grid Input Voltage (Absolute Maximum Ratings): >380VAC
- Input Voltage Range: 90-270VAC
- Maximum AC Input Current: 30A
- Nominal Operating Frequency: 50/60Hz
AC Output
- Nominal AC Output Power: 6000W
- Max. Output Apparent Power: 6000VA
- Nominal AC Output Voltage: 220/230/240VAC
- Total Voltage Harmonic Distortion: <3%
- Nominal AC Output Current: 27.3A
- Max. AC Output Current: 54.6A (5 seconds)
- Nominal AC Frequency: 50/60Hz
- Switch Time: 10ms
- Surge Power: 12000VA
- Load Capacity of Motor: 8HP
- Overload Capacity: 10s@110%~150% load, 5s@150%~200% load
Battery
- Battery Type: Lead-acid/Li-ion/User Defined
- Rated Battery Voltage: 48VDC
- Battery Voltage Range: 40V-60V
- Max. MPPT Charging Current: 120A
- Max. Mains/Generator Charging Current: 120A
- Max. Battery Discharging Current: 138A
General
- Dimensions DWH (mm): 120346.6464.7
- Net Weight (kg): 15
- Operating Temperature Range: -10~+55℃, >45℃ power derating
- Max. Operating Altitude: 4000m, >2000m Power Derating
- Communication: Wifi/RS485/Dry/Dry Contact/RS232
- Smart Generator Support: Yes, External ATS
- Smart Load Support: Yes, External Contactor
- Number of Parallel: 12
- Cooling Method: Intelligent Fan Cooling
- Noise: <60dB
- Authentication Level: IEC62109-1, IEC6209-2, IEC1683
Protection
- Ingress Protection: IP54
- Overvoltage Protection: Yes
- Overload Protection: Yes
- Short Circuit Protection: Yes
- Over Temperature Protection: Yes
- Surge Protection: DC Type II, AC Type III
