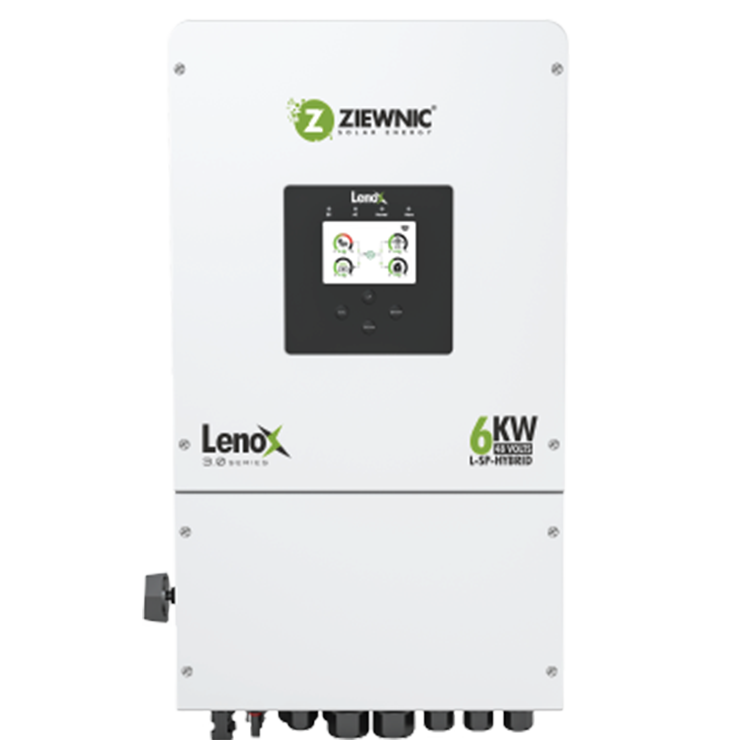

ZIEWNIC SOLAR ENERGY HYBRID ON / OFF GRID 6KW (PV8000) 48V WITH ENERGY STORAGE WITH 5 YEAR WARRANTY
Original price was: ₨280,000.00.₨245,000.00Current price is: ₨245,000.00.
ZIEWNIC SOLAR ENERGY HYBRID ON / OFF GRID 6KW (PV8000) 48V WITH ENERGY & AVAILABLE ON FAIZA ELECTRONICS & SOARHOUSE
FAIZA ELECTRONIC
DESRIPTION
- Compatible with almost all 48V – LifePO4 Battery Pack
- External light indicator, logging status at a glance
- Colorful Touch LCD
- 6 Time Periods for battery charging / discharging
- Support storing energy from Diesel Generator
- AC Coupling to retrofit existing solar system
- Plug and play, pick power with-in inverter, no external power needed, easy to install
- Enhance stability
- External design, easier to replace faulty equipment
- End-user can monitor yields at any time.
-
SPECIFICATION Rated Power 6000W PV INPUT Max.power(KW) 8000 Max.DC voltage(V) 500 MPPT voltage range(V) 125 – 430 Max.input current(A) 20 + 20 Max.input strings number 1 + 1 AC OUTPUT (GRID-TIED) Grid voltage/range(V) 220/230V (Single Phase) Frequency(Hz) 50/60 PF 0.8lagging-0.8leading THDi <3% AC output topology L+N+PE BATTERY Battery Voltage Range (V) 40~63 Max.charging voltage(V) 63 Max.charge/discharge current(A) 135/135 Battery Type Lithium / Lead-acid / Tubuler UPS OUTPUT Rated power (kw) 6 Peak Power (Off Grid) 2 Times of rated power 10Se Rated output current(A) 27.2 Rated frequency (Hz) 50/60 Transfer Time(ms) <10 THDu <10% Overload capacity 5s > 110%load; 10s >≥101%~110% load PROTECTION & FEATURE Anti-island protection Yes Insulation monitoring Yes Residual current monitoring Yes Arc fault protection Yes (Optional) Parallel function Yes, Multiple Other protection AC Over-Current, AC Over-Voltage, Over Temperature Protection GENERAL SPECIFICATIONS Efficiency (peak) 99% Degree of protection Class 1 Operation temperature range (°C) -40°C~60°C, >45°C derating Cooling Smart Cooling Relative humidity 5~95%(non-condensing) Altitude (>2000m Derating) Dimensions W x D x H(mm) 330*580*239 EMC/Safety Regulation IEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4 Isolation transformer No Self-consumption(W) <5 DISPLAY AND COMMUNICATION Display Touch screen Interface Standard:RS232,CAN&RS485; Optional:WiFi,CT Safety standard EN/IEC62109-1,EN/IEC62109-2
