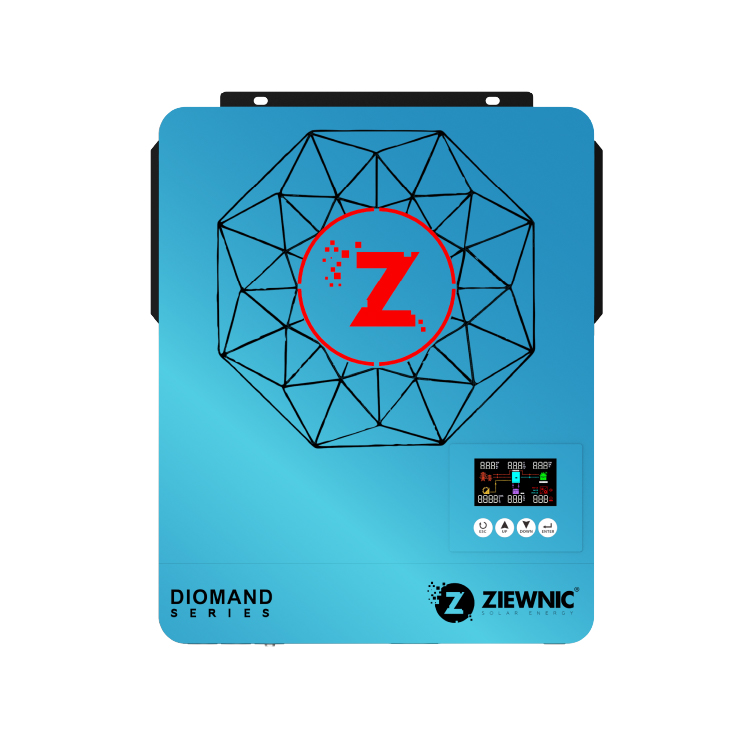

Ziewnic Diamond Series 6.5 kW  PV8500 5G Hybrid Inverter

Description:

Ziewnic Diamond Series 6.5 kW  PV8500 5G Hybrid Inverter from Ziewnic is a robust, multi-mode solar inverter engineered for modern residential and small-commercial energy systems. This pure sine-wave, hybrid 5th‑generation unit allows seamless switching between solar, battery, grid, or generator power. It features dual MPPT solar tracking, extensive protections, and optional Wi‑Fi monitoring—designed for both on-grid (net-metering) and off-grid operation. With rugged build quality and high surge capacity, it ensures reliable performance even in challenging environments.

ziewnic Specifications:

Model: Diamond Series PV8500 (6.5 kW, 1‑Phase)
Rated Output Power: 6,500 W
Maximum PV Input Power: 8,500 W
Maximum Solar Charging Current: 160 A
MPPT Trackers: Dual, up to 27 A input each
PV Input Voltage: 90–500 VDC (startup at 90 V, feeding at 120 V)
Solar-to-AC Efficiency: Up to 98%
Battery-to-AC Efficiency: ~94%
Output AC Voltage: 220–240 VAC, 29 A rated current
Power Factor: > 0.99
Surge Capacity: 2× rated (13 kW for 5 sec)
Battery Voltage: 48 VDC nominal
Battery Charging Current:
– Solar: 160 A
– AC: 100 A
Dimensions: 420 × 310 × 110 mm
Weight: ~11 kg
Display & Communication: Color touch-LCD; RS232 / Wi‑Fi / GPRS
Operating Temperature: –10 °C to +50 °C
Protection & Certifications: Built‑in breaker, conformal coating, anti‑dust, IP features
Warranty: 5 Years
Technology: Pure sine wave, true MPPT, zero-export ready, multiple working modes (ON/OFF/MKS/KS), lithium-battery compatible, grid-tie with net-metering support.

Ideal For:

• 2-Ton Inverter AC
• Refrigerators, Washing Machines, Water Pumps
• Home or shop with high-energy demand
• Off-grid / hybrid solar systems with lithium battery
